nf3d

Introduction

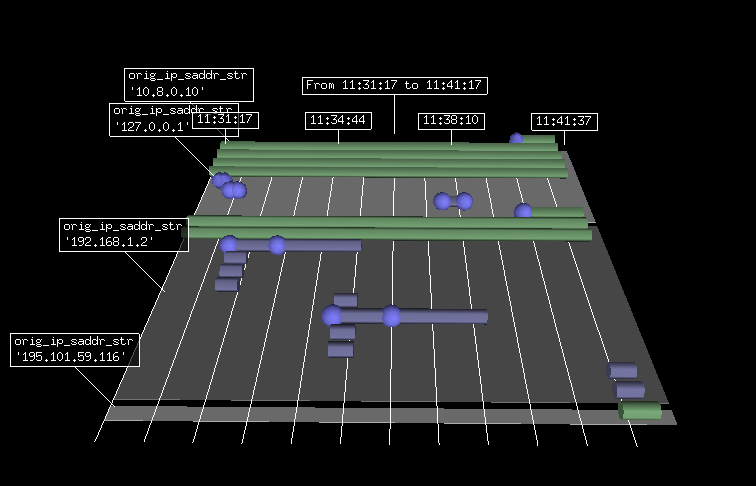

nf3d is a Netfilter visualisation tool. It displays connections and logged packets in a GANTT diagram fashion. nf3d source are hosted on github: nf3d source

Download latest version: nf3d-0.8.tar.gz

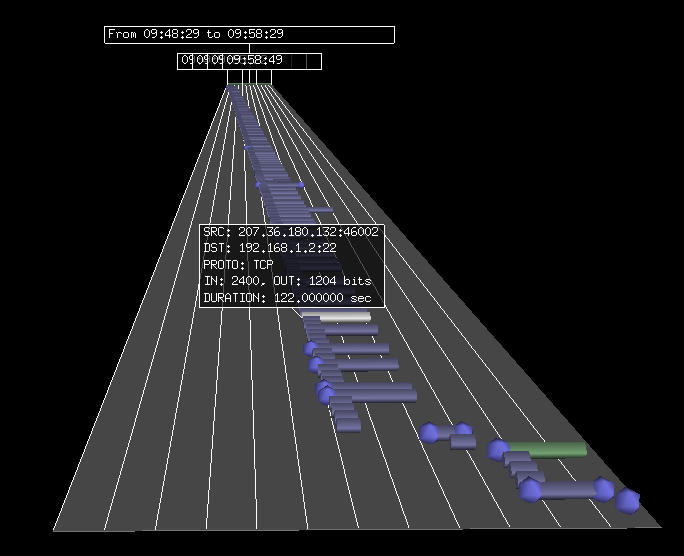

This is a visualization method that can be used to see and detect attacks. For example, the following image is the trace of an ssh scan:

Prerequisites

nf3d is currently using ulogd2 pgsql output to read information. You will thus need a working ulogd2 setup to be able to use this tool.

Ulogd2 needs to store the connection tracking entries into a Postgresql database. This can be done by activating the following stack in ulogd.conf

stack=ct1:NFCT,ip2str1:IP2STR,pgsql2:PGSQL

The INSERT_OR_REPLACE_CT procedure is the most interesting here as you will have information about the status of a connection (opened or close).

For recent kernel, if you want to have bytes information, you need to activate connection accounting. It can be done via

echo "1"> /proc/sys/net/netfilter/nf_conntrack_acct

Installation

nf3d is using visual python and pygresql as well as other standard modules. You will need them to run this software. On debian, you can install them by typing

aptitude install python-visual python-pygresql python-configobj python-setuptools

You can fetch source from github with:

git clone https://github.com/regit/nf3d.git

Then go to nf3d directory and type

python ./setup.py install
cp nf3d.conf /etc/nf3d.conf

Running it
nf3d -h will return an usage message:

nf3d [-hV] [-S START] [-E END] [-D DURATION] [-d ORIG_IP_DADDR_STR] \
     [-P ORIG_L4_SPORT] [-I ORIG_IP_PROTOCOL] [-m CT_MARK] \
     [-p ORIG_L4_DPORT] [-s ORIG_IP_SADDR_STR]

To display connections and logged packets over one hour period

nf3d -D 3600

Keyboard usage

Global
  • ‘c’: switch highlighted items to normal
  • ‘l’: toggle label fisplay on selected items
  • ‘r’: refresh current connection table
  • down arrow: highlight next item
  • up arrow: highlight prev item
  • ‘w’: dump information about highlighted object to stdout
  • ‘?’: display help message

Selection

Click on a selection to highlight it and you can now use selection feature. Pressing the following key will highlight all connections matching filter :

  • ‘d’: original destination IP
  • ‘s’: original source IP
  • ‘p’: original destination port
  • ‘P’: original source port

original is referring to the existence of original and reply IP tuple in Netfilter conntrack.

Connections lists handling

You can change the displayed time window with the following keys:

  • right arrow: move time window right
  • left arrow: move time window left

You can modify the displayed connections by using filter:

  • ‘F’: only display highlighted connections
  • ‘R’: reset filter and display all connections in the time window
  • ‘O’: order connections by last filter
  • ‘:’: interactive filter, give a filter with syntax ‘key=value’

You can also duplicate connections to be able to compare different time window or filter:

  • ‘C’: duplicate the selected table
  • ‘D’: delete the selected table
